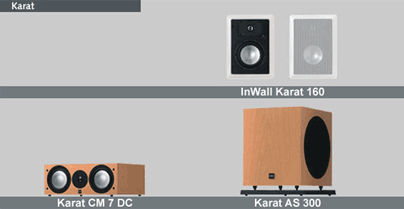

| Model |
Karat InWall 160 |
Karat CM
7 DC |
Karat AS 300 |
| Type |
InWall speaker |
Center/compact speaker |
Active subwoofer system |
| Price |
$550.00/pair
|
$650.00
|
$1700.00
|
| Engineering Principle |
2-way, free air system |
2-way, bass reflex system |
passive radiator bass reflex
system |
| Nom. /Music power handling
|
60/110 watts |
85/140 watts |
250/350 watts |
| Efficiency (SPL 1 W/1m)
|
85.5 dB |
87.5 dB |
|
| Frequency response |
45...30.000 Hz |
32...30.000 Hz |
20...150 Hz |
| Crossover frequency |
3.500 Hz |
3.000 Hz |
25...150 Hz (adjustable) |
| Woofer |
160 mm (6''), aluminum-manganese
membrane |
2 x 160 mm (6''), aluminum-manganese
membrane |
310 mm (12''), cellulose/polyester
membrane |
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
|
| Nominal impedance |
4...8 ohms |
4...8 ohms |
|
| Dimensions (WxHxD) |
23 x 31 x 7 cm (9.1'' x 12.2''
x 2.8'') |
46 x 17 x 35 cm (18.1'' x 6.7''
x 13.8'') |
36 x 48 x 44 cm (14.2'' x 18.9''
x 17.3'') |
| Weight |
11# (pair) |
28# |
74# |
| Enclosure finishes |
White |
Ash veneer, black |
Ash veneer, black |
| Cover |
White metal grill |
Black fabric |
Black fabric |
| Enclosure finishes |
|
Cherry veneer |
Cherry veneer |
| Cover |
|
Black fabric |
Black fabric |
| Enclosure finishes |
|
Beech veneer |
Beech veneer |
| Cover |
|
Black fabric |
Black fabric |
| Enclosure finishes |
|
Silver satin lacquer |
Silver satin lacquer |
| Cover |
|
Black fabric |
Black fabric |
| Special features |
Gold-plated clamp contacts Adjustable
tweeter level |
Magnetically shielded DC-technology
|
Magnetically shielded Adjustable
crossover frequency Adjustable bass level Switchable phase adjustment
SC-technology |
| Available Accessories |
|
LS 60 loudspeaker stand |
|
