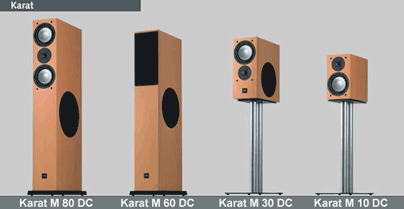

| Model |
Karat M 80 DC |
Karat M
60 DC |
Karat M 30 DC |
Karat M
10 DC |
| Type |
Floorstanding speaker |
Floorstanding speaker |
Compact speaker |
Compact speaker |
|
Sold in mirror-image pairs.
|
Sold in mirror-image pairs.
|
Sold in mirror-image pairs.
|
|
| Price |
$2700.00/pair
|
$2200.00/pair
|
$1700.00/pair
|
$900.00/pair
|
| Engineering Principle |
3-way, bass reflex system |
3-way, bass reflex system |
3-way, bass reflex system |
2-way, bass reflex system |
| Nom. /Music power handling
|
180/300 watts |
150/250 watts |
120/200 watts |
60/100 watts |
| Efficiency (SPL 1 W/1m)
|
88 dB |
87 dB |
86 dB |
85 dB |
| Frequency response |
22...30.000 Hz |
22...30.000 Hz |
22...30.000 Hz |
33...30.000 Hz |
| Crossover frequency |
180/3.200 Hz |
180/3.200 Hz |
180/3.200 Hz |
3.000 Hz |
| Woofer |
260 mm (10''), cellulose/graphite
membrane |
220 mm (9''), cellulose/graphite
membrane |
200 mm (8''), cellulose/graphite
membrane |
160 mm (6''), aluminum-manganese
membrane |
| Midrange |
2 x 160 mm (2 x 6''), aluminum-manganese
membrane |
160 mm (6''), aluminum-manganese
membrane |
160 mm (6''), aluminum-manganese
membrane |
N/A |
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
| Nominal impedance |
4...8 ohms |
4...8 ohms |
4...8 ohms |
4...8 ohms |
| Dimensions (WxHxD) |
17 x 112.5 x 41 cm
(6.7'' x 44.3'' x 16.1'') |
17 x 105 x 38 cm (6.7''x 41.3''
x 15.0'') |
17 x 39 x 38 cm (6.7'' x 15.4''
x 15.0'') |
17 x 29 x 29.3 cm (6.7'' x 11.4''
x 11.5'') |
| Weight |
71# (x2) |
64# (x2) |
30# (x2) |
35# (pair) |
| Enclosure finishes |
Ash veneer, black |
Ash veneer, black |
Ash veneer, black |
Ash veneer, black |
| Cover |
Black fabric |
Black fabric |
Black fabric |
Black fabric |
| Enclosure finishes |
Cherry veneer |
Cherry veneer |
Cherry veneer |
Cherry veneer |
| Cover |
Black fabric |
Black fabric |
Black fabric |
Black fabric |
| Enclosure finishes |
Beech veneer |
Beech veneer |
Beech veneer |
Beech veneer |
| Cover |
Black fabric |
Black fabric |
Black fabric |
Black fabric |
| Enclosure finishes |
Silver satin lacquer |
Silver satin lacquer |
Silver satin lacquer |
Silver satin lacquer |
| Cover |
Black fabric |
Black fabric |
Black fabric |
Black fabric |
| Special features |
Gold-plated bi-wiring/bi-amping
connection
DC-technology |
Gold-plated bi-wiring/bi-amping
connection
DC-technology |
Gold-plated bi-wiring/bi-amping
connection
DC-technology |
Gold-plated bi-wiring/bi-amping
connection
DC-technology |
| Available Accessories |
|
|
LS 60 loudspeaker stand |
LS 60 loudspeaker stand |
