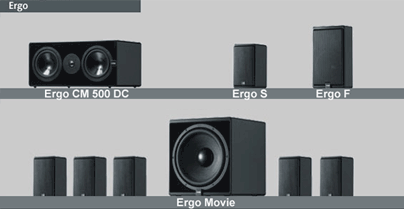

| Model |
Ergo CM 500 DC |
Ergo S |
Ergo F |
Ergo Movie
|
| Type |
Center/compact speaker |
Minispeaker |
Flat speaker |
Satellites/Center speaker
Active subwoofer system |
| Price |
$750.00/pair
|
$350.00
|
$600.00
|
$1650.00
|
| Engineering Principle |
2-way, bass reflex system |
2-way, closed system |
2-way, closed system |
2-way, closed system (Center)
Closed System (Subwoofer) |
| Nom. /Music power handling
|
110/150 watts |
40/80 watts |
60/100 watts |
Center: 40/70 watts, Subwoofer:
90/160 watts |
| Efficiency (SPL 1 W/1m)
|
87.9 dB |
87.2 dB |
86 dB |
87.2 dB |
| Frequency response |
26...30.000 Hz |
45...30.000 Hz |
40...30.000 Hz |
45...30.000 Hz (Center) 22...150
Hz (Subwoofer) |
| Crossover frequency |
3.000 Hz |
2.200 Hz |
3.000 Hz |
2.200 Hz (Center) 50...150 Hz
(adjustable, Subwoofer) |
| Woofer |
2 x 180 mm (2 x 7''), aluminum-manganese
membrane |
110 mm (4''), aluminum-manganese
membrane |
180 mm (7''), aluminum-manganese
membrane |
110 mm (4''), aluminum-manganese
membrane (Center) 310 mm (12''), cellulose/graphite membrane
(Subwoofer) |
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane (Center) |
| Nominal impedance |
4...8 ohms |
4...8 ohms |
4...8 ohms |
4...8 ohms |
| Dimensions (WxHxD) |
50 x 22.5 x 28.7 cm (19.7''
x 8.9'' x 11.3'') |
12 x 20.5 x 10 cm (4.7'' x 8.1''
x 3.9'') |
20.5 x 34 x 9 cm (8.1'' x 13.4''
x 3.5'') |
Center: 20.5 x 12 x 10 cm (4.7''
x 8.1'' x 3.9'')
Subwoofer: 12 x 20.5 x 10 cm (4.7'' x 8.1'' x 3.9'') |
| Weight |
28# |
10# (pair) |
21# (pair) |
60# |
| Enclosure finishes |
Black satin lacquer |
Black satin lacquer |
Black satin lacquer |
Black satin lacquer |
| Cover |
Black metal grill |
Black metal grill |
Black metal grill |
Black metal grill |
| Enclosure finishes |
Cherry veneer |
White satin lacquer |
Cherry veneer |
White satin lacquer |
| Cover |
Black metal grill |
White metal grill |
Black metal grill |
White metal grill |
| Enclosure finishes |
Beech veneer |
|
Beech veneer |
|
| Cover |
Silver metal grill |
|
Silver metal grill |
|
| Enclosure finishes |
|
|
White satin lacquer |
|
| Cover |
|
|
White metal grill |
|
| Special features |
Magnetically shielded DC-technology
|
Polyswitch protection |
Integrated wall mounting |
Centerspeaker magnetically shielded
Polyswitch protection Subwoofer: Magnetically shielded Adjustable
crossover frequency Adjustable bass level Switchable phase adjustment
SC-technology |
| Available Accessories |
LS 60 loudspeaker stand |
LS 80 loudspeaker stand Wall
and ceiling brackets |
|
LS 80 loudspeaker stand Wall
and ceiling brackets |
