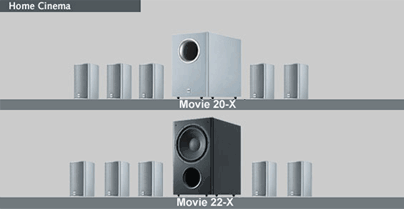

Model Movie 20-X Movie 22-X
Price $1150.00 $1250.00
Type Plus X, Satellites/ Centerspeaker AS 20, Active Subwoofer system Plus X, Satellites/ Centerspeaker AS 22, Active Subwoofer system
Engineering Principle 2-way, closed system Bandpass system 2-way, closed system Bass reflex system
Nom. /Music power handling 40/80 watts   40/80 watts
Nom. /Music output   60/120 watts   70/120 watts
Efficiency (SPL 1 W/1m) 87 dB 87 dB
Frequency response 45...30.000 Hz 33...140 Hz 45...30.000 Hz 25...150 Hz
Crossover frequency 2.500 Hz 80...140 Hz (adjustable) 2.500 Hz 50...150 Hz (adjustable)
Woofer 110 mm (4''), cellulose-graphite membrane 200 mm (8''), cellulose-graphite membrane 110 mm (4''), cellulose-graphite membrane 220 mm (9''), cellulose-graphite membrane
Tweeter 25 mm (1''), aluminum-manganese membrane   25 mm (1''), aluminum-manganese membrane
Nominal impedance 4...8 ohms 4...8 ohms
Dimensions (WxHxD) 13 x 20 x 13 cm (5.1'' x 7.9'' x 5.1'') 24 x 36 x 45 cm 13 x 20 x 13 cm (5.1'' x 7.9'' x 5.1'') 25.5 x 39.5 x 38 cm (10.0'' x 15.5'' x 15.0'')
Weight 59# 56#
Enclosure finishes Black and Silver satin lacquer Black and Silver matt décor Black and Silver satin lacquer Black matt décor
Cover Black and Silver metal grill   Black and Silver metal grill Black metal grill
Special features Magnetically shielded Polyswitch protection Adjustable crossover frequency Adjustable bass level Switchable phase adjustment SC-technology Magnetically shielded Polyswitch protection Magnetically shielded, Adjustable crossover frequency Adjustable bass level Switchable phase adjustment SC-technology
Available Accessories LS 80 loudspeaker stand Wall and ceiling brackets Cantomount   LS 80 loudspeaker stand Wall and ceiling brackets Cantomount
