| Model |

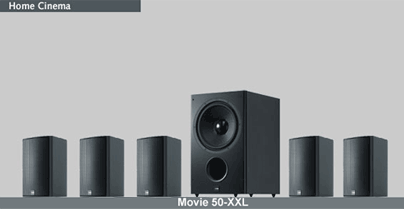

Movie 50-XXL |
| Price |
$2250.00 |
| Type |
Plus XXL, Satellites/ Centerspeaker |
AS 50, Active Subwoofer system
|
| Engineering Principle |
2-way, bass reflex system |
Bass reflex system |
| Nom. /Music power handling
|
70/120 watts |
|
| Nom. /Music output |
|
250/350 watts |
| Efficiency (SPL 1 W/1m)
|
88 dB |
| Frequency response |
38...30.000 Hz |
20...150 Hz |
| Crossover frequency |
3.000 Hz |
25...150 Hz (adjustable) |
| Woofer |
180 mm (7''), cellulose-graphite
membrane |
310 mm (12''), cellulose-polyester
membrane |
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
|
| Nominal impedance |
4...8 ohms |
| Dimensions (WxHxD) |
20.5 x 30 x 19 cm (8.1'' x
11.8'' x 7.5'') |
36 x 56 x 46 cm (14.2'' x 22.1''
x 18.1'') |
| Weight |
3 cartons: 68#
(sub) / 12# (ctr) / 44# (4x sat) |
| Enclosure finishes |
Black and Silver satin lacquer |
Black matt décor |
| Cover |
Black and Silver metal grill
|
Black metal grill |
| Special features |
Magnetically shielded Polyswitch
protection |
Magnetically shielded, Adjustable
crossover frequency Adjustable bass level Switchable phase adjustment
SC-technology |
| Available Accessories |
LS 70 loudspeaker stand Wall
and ceiling brackets Cantomount XXL |
|
