LE

Next >>

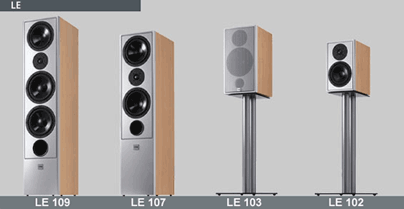

Model LE 109 LE 107 LE 103 LE 102
Type Floorstanding speaker Floorstanding speaker Compact speaker Compact speaker
Price $1000.00/pair $750.00/pair $500.00/pair $350.00/pair
Engineering Principle 3-way, bass reflex system 3-way, bass reflex system 2-way, bass reflex system 2-way, bass reflex system
Nom. /Music power handling 150/250 watts 100/150 watts 70/110 watts 50/90 watts
Efficiency (SPL 1 W/1m) 89 dB 87.5 dB 87 dB 86 dB
Frequency response 20...26.000 Hz 25...26.000 Hz 38...26.000 Hz 42...26.000 Hz
Crossover frequency 300/3.200 Hz 300/3.200 Hz 3.000 Hz 3.200 Hz
Woofer 2 x 200 mm (8''), polypropylene membrane 180 mm (7''), polypropylene membrane 180 mm (7''), polypropylene membrane 160 mm (6''), polypropylene membrane
Midrange 180 mm (7''), polypropylene membrane 180 mm (7''), polypropylene membrane N/A N/A
Tweeter 25 mm (1''), fabric membrane 25 mm (1''), fabric membrane 25 mm (1''), fabric membrane 25 mm (1''), fabric membrane
Nominal impedance 4...8 ohms 4...8 ohms 4...8 ohms 4...8 ohms
Dimensions (WxHxD) 23 x 102.5 x 31 cm (9.1'' x 40.4'' x 12.2'') 21.5 x 90 x 29 cm (8.5'' x 35.4'' x 11.4'') 22 x 40 x 27 cm (8.7'' x 15.7'' x 10.6'') 19.5 x 30 x 26 cm (7.7'' x 11.8'' x 10.2'')
Weight 46# 36# 34# (pair) 23# (pair)
Enclosure finishes Beech Beech Beech Beech
Front Silver Silver Silver Silver
Cover Silver metal grill Silver metal grill Silver metal grill Silver metal grill
Enclosure finishes Ash black Ash black Ash black Ash black
Front Black Black Black Black
Cover Black metal grill Black metal grill Black metal grill Black metal grill
Available Accessories     LS 60 loudspeaker stand LS 60 loudspeaker stand
