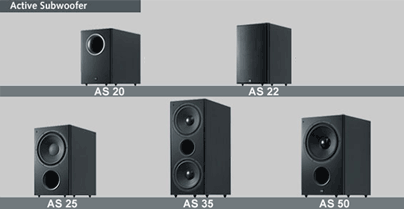

Active Subwoofer
Model AS 20 AS 22 AS 25 AS 35 AS 50
Type
Active subwoofer system
Price $399.00 $499.00 $599.00 $799.00 $999.00
Engineering Principle Bandpass system Bass reflex system Bass reflex system Bass reflex system Bass reflex system
Nom. /Music output 60/120 watts 70/120 watts 80/150 watts 100/180 watts 250/350 watts
Frequency response 33...140 Hz 25...150 Hz 22...150 Hz 20...150 Hz 20...150 Hz
Crossover frequency 80...140 Hz (adjustable) 50...150 Hz (adjustable) 50...150 Hz (adjustable) 50...150 Hz (adjustable) 25...150 Hz (adjustable)
Woofer 200 mm (8''), cellulose/ graphite membrane 220 mm (9''), cellulose/ graphite membrane 260 mm (10''), cellulose/ graphite membrane 220 mm (2x9''), cellulose/ graphite membrane 310 mm, Cellulose/Polyester membrane
Dimensions (WxHxD) 24 x 36 x 45 cm (9.5'' x 14.1'' x 17.7'') 25.5 x 39.5 x 38 cm (10.0'' x 15.6''x 15.0'') 29.5 x 47 x 44 cm (11.6'' x 18.5'' x 17.3'') 25.5 x 60 x 44 cm (10'' x 23.6'' x 17.3'') 36 x 56 x 46 cm (14.2'' x 22.1'' x 18.1'')
Weight 30# 29# 42# 50# 68#
Enclosure finishes Black matt décor Black matt décor Black matt décor Black matt décor Black matt décor
Front Black satin lacquer Black satin lacquer Black satin lacquer Black satin lacquer Black satin lacquer
Cover   Black metall grill Black metall grill Black metall grill Black metall grill
Enclosure finishes Silver matt décor Beech Beech
Front Silver satin lacquer Silver Silver
Cover   Silver metal grill Silver metal grill
Special features Adjustable crossover frequency Adjustable bass level Switchable phase adjustment SC-technology

Magnetically shielded
