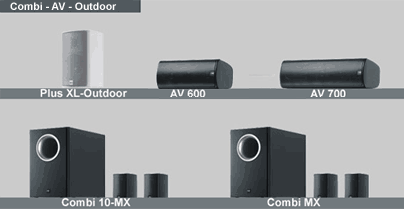

| Model |
Plus XL-Outdoor |
AV 600 |
AV 700 |
Combi 10-MX |
Combi MX |
| Type |
Minispeaker |
Shielded center speaker |
Shielded center speaker |
Satellites/ Active subwoofer
system |
Satellites/ Subwoofer system
|
| Price |
$399/pair
|
$299.00
|
$350.00 |
$599.00
|
$499.00
|
| Engineering Principle |
2-way, closed system |
2-way, closed system |
2-way, bass reflex system |
Satelltes: 2-way, closed system
Subwoofer: Bandpass System |
Satellites: 2-way, closed system
Subwoofer: Bandpass system |
| Nom. /Music power handling
|
60/100 watts |
60/100 watts |
60/100 watts |
40/70 watts |
Satellites: 40/70 watts Subwoofer:
2 x 60/120 watts |
| Nom. /Music output |
|
|
|
50/100 watts |
|
| Efficiency (SPL 1 W/1m)
|
88 dB |
87.5 dB |
87.5 dB |
85 dB |
Satellites: 85 dB |
| Frequency response |
40...30.000 Hz |
45...30.000 Hz |
40...30.000 Hz |
Satellites: 120...25.000 Hz
Subwoofer: 33...140 Hz |
Satellites: 120...25,000 Hz
Subwoofer: 33...140 Hz |
| Crossover frequency |
2.700 Hz |
3.000 Hz |
3.000 Hz |
Satellites: 5.000 Hz Subwoofer:
80...140 Hz (adjustable) |
Satellites: 5.000 Hz Subwoofer:
120 Hz |
| Woofer |
130 mm (5''), cellulose-graphite
membrane |
2 x 110 mm (2 x 4''), cellulose-graphite
membrane |
2 x 110 mm (2 x 4''), cellulose-graphite
membrane |
Satellites: 80 mm (3''), polypropylene
membrane Subwoofer: 200 mm (8''), cellulose/graphite membrane
|
Satellites: 80 mm (3''), polypropylene
membrane Subwoofer: 200 mm (8''), cellulose/graphite membrane
|
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1''), aluminum-manganese
membrane |
Satellites: 15 mm (0.6''), aluminum-manganese
membrane |
Satellites: 15 mm (0.6''), aluminum-manganese
membrane |
| Nominal impedance |
4...8 ohms |
4...8 ohms |
4...8 ohms |
4...8 ohms |
4...8 ohms |
| Dimensions (WxHxD) |
16 x 24 x 15.4 (6.3'' x 9.4''
x 6.1'') |
31 x 13 x 16.5 cm (12.2'' x
5.1'' x 6.5'') |
44 x 13 x 16.5 cm (17.3'' x
5.1'' x 6.5'') |
Satellites: 9 x 11.5 x 10 cm
(3.5'' x 4.5'' x 3.9'') Subwoofer: 24 x 36 x 43 cm (9.5'' x
14.2'' x 17.0'') |
Satellites: 9 x 11.5 x 10 cm
(3.5'' x 4.5'' x 3.9'') Subwoofer: 24 x 36 x 43 cm (9.5'' x
14.2'' x 17.0'') |
| Weight |
11# (pair) |
10# |
12# |
30# |
24# |
| Enclosure finishes |
White satin lacquer |
Black satin lacquer |
Black satin lacquer |
Black Matt |
Satellites: Black satin lacquer
Subwoofer: Black matt décor |
| Cover |
White metal grill |
Black metal grill |
Black metal grill |
Black metal grill |
Satellites: Black metal grill
|
| Enclosure finishes |
|
White satin lacquer |
White satin lacquer |
White Matt |
|
| Cover |
|
White metal grill |
White metal grill |
White metal grill |
|
| Enclosure finishes |
|
Silver satin lacquer |
Silver satin lacquer |
Silver |
|
| Cover |
|
Silver metal grill |
Silver metal grill |
Silver metal grill |
|
| Special features |
Polyswitch protection Moisture
protection |
Magnetically shielded, integrated
wall mounting |
Magnetically shielded |
Satellites: Magnetically shielded
Polyswitch protection Wall brackets included Subwoofer: Adjustable
crossover frequency Adjustable bass level Switchable phase adjustment
SC-technology |
Satellites: Magnetically shielded
Polyswitch protection Wall brackets included |
| Available Accessories |
LS 80 loudspeaker stand Wall
and ceiling brackets Cantomount XL |
Wall and ceiling brackets, Cantomount
in pairs or single Cantomount XL |
|
LS 90 loudspeaker stand |
Satellites: LS 90 loudspeaker
stand |
