THX
|
 |
|

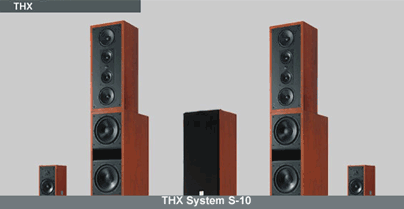

| Canton has developed the THX-System S-10 for the ultimate cinema
experience at home, thereby setting new standards in surround sound.
Awarded the official THX "Ultra" certificate by Lucasfilm, the Canton
system produces breathtaking reality and dynamism from seven loudspeakers.
With improved dialogues, precise localization of the sound and a broad
and dynamic frequency range, the viewer really is drawn into the on-screen
action. Two front and one center speaker are responsible for perfect
alignment in the front area and two subwoofers establish a solid bass
foundation. The perfect home theater experience is rounded off by
a diffused sound field in a dipole layout. And by the way, experts
also value the THX System S-10 because of its outstanding musical
capability. |
| Model |
THX-System S-10 |
| Price |
$9000.00
|
| Type |
Frontspeaker |
Centerspeaker |
Subwoofer |
Dipol |
| Engineering Principle |
3-way, closed system |
3-way, closed system |
Bass reflex system |
2-way, closed system |
| Nom. /Music power handling
|
250/500 watts |
250/500 watts |
250/500 watts |
120/170 watts |
| Efficiency (SPL 1 W/1m)
|
90.5 dB |
90 dB |
94 dB |
85 dB |
| Frequency response |
60...25.000 Hz |
60...25.000 Hz |
20...150 Hz |
100...25.000 Hz |
| Crossover frequency |
500/7.000 Hz |
500/7.000 Hz |
|
4.800 Hz |
| Woofer |
2 x 180 mm (7''), cellulose-graphite
membrane |
2 x 180 mm (7''), cellulose-graphite
membrane |
2 x 260 mm (10''), cellulose-graphite
membrane |
2 x 130 mm (5''), cellulose-graphite
membrane |
| Midrange |
2 x 100 mm (4''), cellulose-graphite
membrane |
2 x 100 mm (4''), cellulose-graphite
membrane |
|
|
| Tweeter |
25 mm (1''), aluminum-manganese
membrane |
25 mm (1'') aluminum-manganese
membrane |
|
2 x 25 mm (1'') aluminum-manganese
membrane |
| Nominal impedance |
4...8 ohms |
| Dimensions (WxHxD) |
31 x 70 x 26 cm (12.2'' x 27.6''
x 10.2'') |
70 x 31 x 26 cm (12.2'' x 27.6''
x 10.2'') |
31 x 70 x 62.5 cm (12.2'' x
27.6'' x 24.6'') |
16 x 26 x 18,6 cm (6.3'' x 10.2''
x 7.3'') |
| Weight |
19.6 kg |
19.6 kg |
35.5 kg |
4.8 kg |
| Enclosure finishes |
Ash veneer, black |
| Cover |
Black fabric cover |
| Enclosure finishes |
Cherry veneer |
| Cover |
Black fabric cover |
| Special features |
Magnetically shielded |
|
